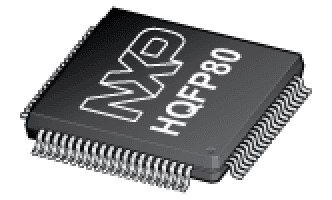

MC9S12P64CQK
Manufacturer
NXP Semiconductors
Description
16-bit MCU, S12 core, 64KB Flash, 32MHz, -40/+85degC, QFP 80
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Rate
Contact Plating
Core Architecture
Data Bus Width
Frequency
Halogen Free
Height - Seated (Max)
Interface
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of Terminals
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Terminal Pitch
Watchdog Timer
Weight
Width
Description
PQFP
Compliant
16 MHz
Tin
HCS12
16 b
32 MHz
Halogen Free
2.45 mm
CAN, SCI, SPI
14 mm
Production (Last Updated: 8 months ago)
32 MHz
85 °C
5.5 V
64 kB
FLASH
-40 °C
3.13 V
Surface Mount
52
80
64
80
8
5 V
Internal
LVD, POR, PWM, WDT
No
4 kB
Yes
Compliant
650 µm
Yes
935.505914 mg
14 mm
Out of Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1133.63
Total Price
₹1133.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1133.63
₹1133.63
10
₹876.20
₹8762.01
25
₹876.17
₹21904.14
50
₹834.90
₹41744.82
100
₹724.85
₹72485.08
500
₹724.85
₹362424.52
1000
₹554.48
₹554482.11
