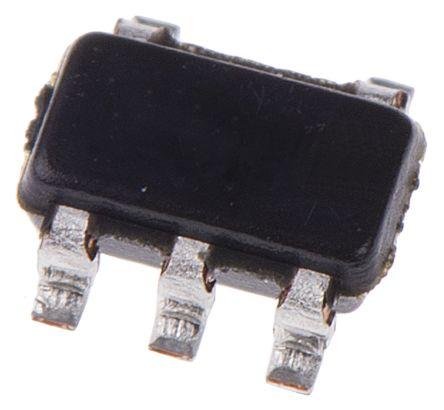

MCP1321T-29LE/OT
Manufacturer
Microchip
Description
MCP132X Series 2.9 V 140 ms Surface Mount Voltage Supervisor SOT-23-5
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Country of Origin
Height
Introduction Date
Length
Lifecycle Status
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Reset Threshold Voltage
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Reset Threshold Voltage
Min Supply Voltage
Mount
Nominal Input Voltage
Nominal Supply Current
Number of Elements
Number of Pins
Number of Voltages Monitored
Operating Supply Current
Output Voltage
Overvoltage Threshold
Packaging
Power Dissipation
Quiescent Current
Radiation Hardening
REACH SVHC
Reset
Reset Timeout
RoHS
Schedule B
Termination
Threshold Voltage
Type
Undervoltage Threshold
Watchdog Timer
Width
Description
2034-11-18
SOT-23
Malaysia, Thailand
1.2954 mm
2005-11-18
3.0988 mm
Production (Last Updated: 4 years ago)
125 °C
10 mA
240 mW
2.944 V
10 µA
5.5 V
-40 °C
2.857 V
1 V
Surface Mount
5.5 V
10 µA
1
5
1
10 µA
300 mV
2.944 V
Cut Tape
240 mW
1 µA
No
No SVHC
Active High/Active Low
140 ms
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
SMD/SMT
2.9 V
Simple Reset/Power-On Reset
2.857 V
Yes
1.8034 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹88.92
Total Price
₹177.84
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹177.84
₹177.84
10
₹88.12
₹881.20
25
₹75.72
₹1893.11
50
₹75.74
₹3787.10
100
₹72.00
₹7199.85
500
₹71.99
₹35996.59
1000
₹71.99
₹71994.08
