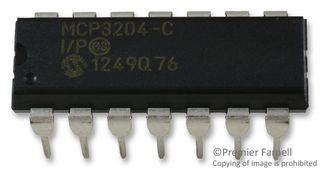

MCP3204-CI/P

Manufacturer

Microchip

Description

Quad Channel Single ADC SAR 100ksps 12-bit Serial Automotive 14-Pin PDIP Tube

Datasheet

download datasheetDownload

Product Attributes

Type

Projected EOL Date

Case/Package

Conversion Rate

Country of Origin

Differential Nonlinearity

Height

Integral Nonlinearity (INL)

Interface

Introduction Date

Lead Free

Length

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Max Supply Voltage

Min Operating Temperature

Min Supply Voltage

Mount

Nominal Supply Current

Number of A/D Converters

Number of Bits

Number of Channels

Number of Converters

Number of Elements

Number of Inputs

Number of Pins

Output Voltage

Packaging

Polarity

Radiation Hardening

REACH SVHC

Resolution

RoHS

Sampling Rate

Schedule B

Signal to Noise Ratio (SNR)

Width

Description

2034-05-16

PDIP

100 ksps

Thailand

1 LSB

3.683 mm

2 LSB

SPI, Serial

2002-01-01

Lead Free

19.2786 mm

Production (Last Updated: 4 years ago)

85 °C

2 W

5.5 V

-40 °C

2.7 V

Through Hole

320 µA

1

12

4

1

1

4

14

4.1 V

Bulk

Unipolar

No

No

1.5 B

Compliant

100 ksps

8542390000

100 dB

6.604 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹184.06

Total Price

₹184.06


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

184.06

184.06

10

183.44

1834.42

25

153.62

3840.45

50

307.17

15358.26

100

307.17

30717.41
