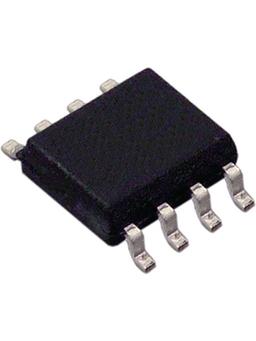

MCP4822-E/SN
Manufacturer
Microchip
Description
DAC 2-CH Resistor-String 12-bit 8-Pin SOIC N Tube - Rail/Tube
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Country of Assembly
Country of Fabrication
Country of Origin
Export Control Classification Number (ECCN) Code
Height
Harmonized Tariff Schedule (HTS) Code
Input Offset Voltage (Vos)
Integral Nonlinearity (INL)
Interface
Introduction Date
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Channels
Number of Converters
Number of DAC Channels
Number of Pins
Operating Supply Voltage
Output Type
Packaging
Polarity
Radiation Hardening
REACH SVHC
Resolution
RoHS
Schedule B
Settling Time
Supply Type
Width
Description
2034-06-15
SOIC
China, Thailand
United States of America
China, Thailand
EAR99
1.2446 mm
8542.39.0040
820 µV
12 LSB
SPI, Serial
2005-06-15
Lead Free
4.8768 mm
Production (Last Updated: 4 years ago)
125 °C
5.5 V
-40 °C
2.7 V
Surface Mount
415 µA
12
2
2
2
8
5 V
Voltage
Bulk
Bipolar, Unipolar
No
No
1.5 B
Compliant
8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
4.5 µs
Single
3.9116 mm
₹369.57
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹369.57
₹369.57
10
₹369.57
₹3695.67
25
₹309.06
₹7726.47
50
₹309.06
₹15452.94
100
₹279.27
₹27927.00
500
₹279.27
₹139635.00
1000
₹279.27
₹279270.00
