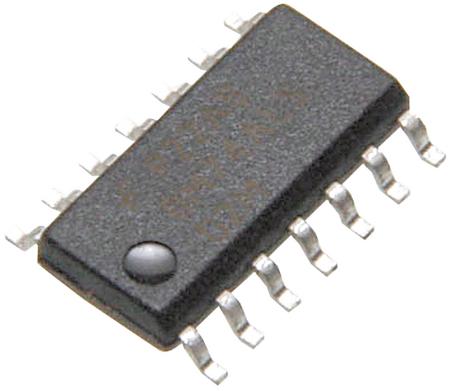

MCP6424-E/SL
Manufacturer
Microchip
Description
5.5 V 90 kHz Quad Circuit Rail-to-Rail Operational Amplifier - SOIC-14
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Bandwidth
Case/Package
Common Mode Rejection Ratio
Country of Origin
Gain Bandwidth Product
Height
Input Bias Current
Input Offset Voltage (Vos)
Introduction Date
Length
Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Amplifiers
Number of Channels
Number of Circuits
Number of Pins
Operating Supply Current
Output Current per Channel
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Slew Rate
Voltage Gain
Width
Description
2039-08-12
90 kHz
SOIC
75 dB
Thailand
90 kHz
1.5 mm
1 pA
1 mV
2013-08-12
8.65 mm
Production (Last Updated: 4 years ago)
125 °C
5.5 V
-40 °C
1.8 V
Surface Mount
4.4 mA
4
4
4
14
4.4 µA
22 mA
No
No SVHC
Compliant
8542330000, 8542330000|8542330000, 8542330000|8542330000|8542330000, 8542330000|8542330000|8542330000|8542330000
0.05 V/µs
115 dB
3.9 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹125.38
Total Price
₹125.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹125.38
₹125.38
10
₹125.55
₹1255.55
25
₹104.68
₹2616.92
50
₹104.66
₹5232.94
100
₹97.05
₹9704.73
500
₹97.05
₹48523.64
1000
₹97.05
₹97047.29
