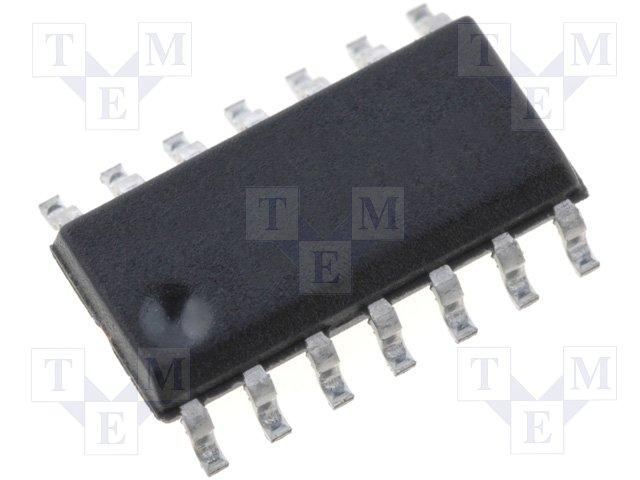

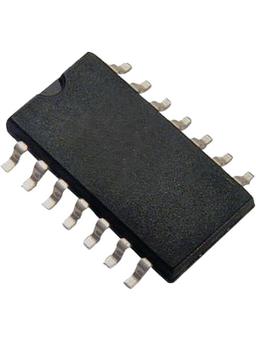

MCP6L04T-E/SL

Manufacturer

Microchip

Description

MCP6L04 Series 6 V 1 MHz Rail-to-Rail I/O Operational Amplifier - SOIC-14

Datasheet

download datasheetDownload

Product Attributes

Type

Bandwidth

Case/Package

Common Mode Rejection Ratio

Contact Plating

Gain Bandwidth Product

Height

Input Bias Current

Input Offset Voltage (Vos)

Lead Free

Length

Lifecycle Status

Max Operating Temperature

Max Supply Voltage

Min Operating Temperature

Min Supply Voltage

Mount

Nominal Supply Current

Number of Amplifiers

Number of Channels

Number of Circuits

Number of Elements

Number of Pins

Operating Supply Current

Output Current

Output Current per Channel

Packaging

Power Supply Rejection Ratio (PSRR)

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Slew Rate

Voltage Gain

Width

Description

1 MHz

SOIC

78 dB

Tin

1 MHz

1.25 mm

2 pA

5 mV

Lead Free

8.65 mm

Production (Last Updated: 1 year ago)

125 °C

6 V

-40 °C

1.8 V

Surface Mount

85 µA

4

4

4

4

14

85 µA

20 mA

20 mA

Tape and Reel

83 dB

No

No SVHC

Compliant

8542330000, 8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|85

0.6 V/µs

105 dB

3.9 mm

45.77

In Stock


Quantity
Shipment
delivery

Ships in 7-10 days

Add to Listarrow_icon

Quantity

Unit Price

Ext. Price

10

45.77

457.75

25

39.26

981.46

50

39.26

1962.92

100

37.20

3720.39

500

37.20

18601.95

1000

37.20

37203.90
