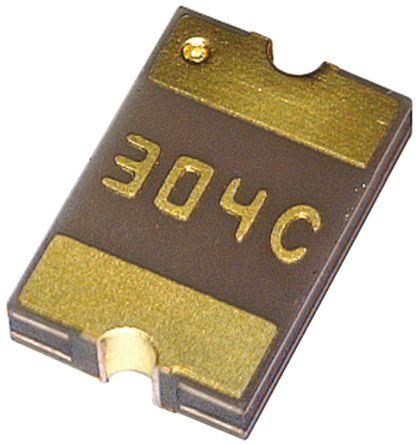

MF-MSMF030-2

Manufacturer

Bourns

Description

PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 30V 10A 0.8W 0.1s 0.3Ohm SMD Solder Pad 1812 T/R Automotive

Datasheet

download datasheetDownload

Product Attributes

Type

Ambient Temperature Range High

Approvals

Case/Package

Case Code (Imperial)

Case Code (Metric)

China RoHS

Contact Plating

Current Rating

Fuse Current

Height

Hold Current

Lead Free

Length

Lifecycle Status

Max Current Rating

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Terminals

Operating Supply Voltage

Power Dissipation

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Terminal Material

Termination

Time to Trip

Trip Current

Voltage Rating

Voltage Rating (DC)

Width

Working Voltage

Description

85 °C

CSA, TUV, UL

1812

1812

4532

Compliant

Gold

10 A

10 A

1.1 mm

300 mA

Lead Free

4.73 mm

Production (Last Updated: 7 months ago)

10 A

85 °C

800 mW

-40 °C

Surface Mount

2

30 V

800 mW

No

Yes

300 mΩ

Compliant

8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040

Gold

SMD/SMT

100 ms

600 mA

30 V

30 V

3.41 mm

30 V

In Stock

Quantity

MOQ : 6

decrement quantity
increment quantity

Per Unit Price

₹16.89

Total Price

₹101.37

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹101.37

₹101.37

10

₹13.78

₹137.83

25

₹13.75

₹343.68

50

₹12.77

₹638.45

100

₹11.81

₹1180.86

500

₹9.84

₹4918.16

1000

₹9.84

₹9836.33
