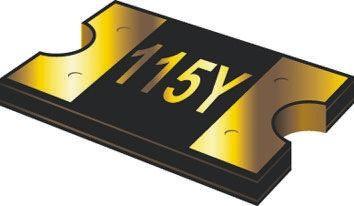

MF-NSMF200-2

Manufacturer

Bourns

Description

PTC Resettable Fuse 2A(hold) 4A(trip) 6V 100A 0.7W 1s 0.02Ohm SMD Solder Pad 1206 T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Ambient Temperature Range High

Approvals

Case/Package

Case Code (Imperial)

Case Code (Metric)

China RoHS

Current Rating

Height

Hold Current

Lead Free

Length

Lifecycle Status

Max Current Rating

Max Operating Temperature

Manufacturer Package Identifier

Min Operating Temperature

Mount

Number of Terminals

Operating Supply Voltage

Packaging

Power Dissipation

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Terminal Material

Termination

Time to Trip

Trip Current

Voltage Rating

Voltage Rating (DC)

Width

Working Voltage

Description

85 °C

CSA, TUV, UL

1206

1206

3216

Compliant

100 A

1.6 mm

2 A

Lead Free

3.25 mm

Production (Last Updated: 7 months ago)

100 A

85 °C

MF-NSMF200-2

-40 °C

Surface Mount

2

6 V

Cut Tape

700 mW

No

Yes

20 mΩ

Compliant

8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040

Gold

SMD/SMT

1 s

4 A

6 V

6 V

1.8 mm

6 V

In Stock

Quantity

MOQ : 2

decrement quantity
increment quantity

Per Unit Price

₹54.24

Total Price

₹108.48

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹108.48

₹108.48

10

₹43.13

₹431.26

25

₹43.07

₹1076.82

50

₹43.07

₹2153.64

100

₹35.73

₹3572.81

500

₹34.77

₹17384.75

1000

₹33.81

₹33810.94
