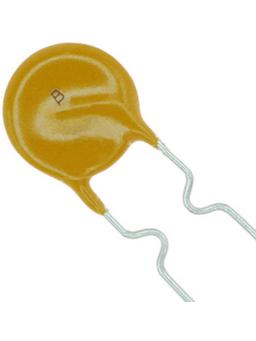

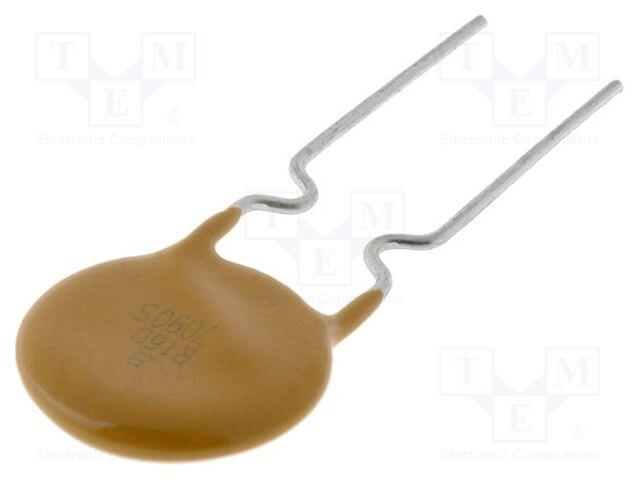

MF-R160

Manufacturer

Bourns

Description

PTC Resettable Fuse 1.6A (hold) 3.2A (trip) 30 Volt 40A 0.9 Watt 8s 0.055 Ohm Radial 10.2 X 3 mm Bulk

Datasheet

download datasheetDownload

Product Attributes

Type

Approvals

Body Material

Case/Package

Current Rating

Diameter

Flammability Rating

Height

Hold Current

Lead Diameter

Lead Free

Lead Length

Lead Pitch

Max Current Rating

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Terminals

Operating Supply Voltage

Packaging

Power Dissipation

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Termination

Time to Trip

Trip Current

Voltage Rating

Voltage Rating (AC)

Voltage Rating (DC)

Width

Wire/Cable Diameter

Description

CSA, TUV, UL

Polymer

Radial

1.6 A

10.2 mm

UL94 V-0

16.8 mm

1.6 A

510 µm

Lead Free

7.6 mm

5.1 mm

40 A

85 °C

900 mW

-40 °C

PCB, Through Hole

2

30 V

Bulk

900 mW

No

No SVHC

105 mΩ

Compliant

8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040

Radial

8 s

3.2 A

30 V

30 V

30 V

10.2 mm

510 µm

In Stock

Quantity

MOQ : 2

decrement quantity
increment quantity

Per Unit Price

₹51.57

Total Price

₹103.15

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹103.15

₹103.15

10

₹32.72

₹327.23

25

₹32.74

₹818.51

50

₹32.65

₹1632.57

100

₹27.20

₹2720.06

500

₹25.13

₹12562.62

1000

₹22.08

₹22077.95
