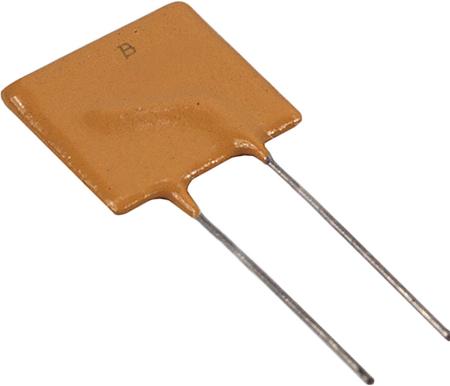

MF-R500
Manufacturer
Bourns
Description
PTC Resettable Fuse 5A(hold) 10A(trip) 30V 40A 3W 14.5s 0.01Ohm Radial 17.4 X 3 X 24.9mm Bulk
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Case/Package
China RoHS
Current Rating
Flammability Rating
Height
Hold Current
Lead Diameter
Lead Length
Lead Pitch
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Termination
Thickness
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Wire/Cable Diameter
Working Voltage
Description
CSA, TUV, UL
Polymer
Radial
Compliant
5 A
UL94 V-0
24.9 mm
5 A
810 µm
7.6 mm
10.2 mm
Production (Last Updated: 7 months ago)
40 A
85 °C
3 W
-40 °C
PCB, Through Hole
2
30 V
Bulk
3 W
No
Yes
10 mΩ
Compliant
Radial
3 mm
14.5 s
10 A
30 V
30 V
30 V
3 mm
810 µm
30 V
In Stock
Quantity
MOQ : 2
Per Unit Price
₹51.57
Total Price
₹103.15
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.15
₹103.15
10
₹40.01
₹400.14
25
₹40.12
₹1003.02
50
₹40.09
₹2004.26
100
₹34.35
₹3434.98
500
₹31.90
₹15951.36
1000
₹29.42
₹29415.63
