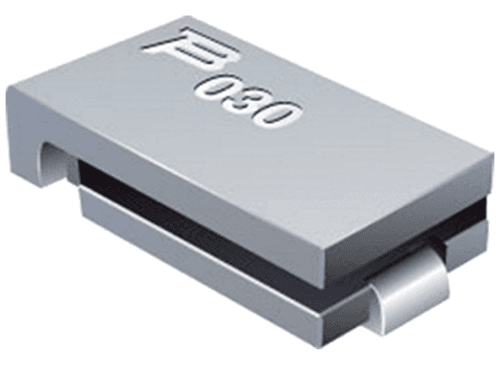

MF-SM100-2
Manufacturer
Bourns
Description
PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 30V 80A 1.7W 0.5s 0.12Ohm SMD
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Case Code (Imperial)
Case Code (Metric)
Contact Plating
Current Rating
Height
Hold Current
Lead Free
Lead Length
Max Current Rating
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Tab Width
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Description
85 °C
CSA, TUV, UL
SMD/SMT
2920
7351
Tin
80 A
3 mm
1.1 A
Lead Free
430 µm
80 A
85 °C
1.7 W
-40 °C
PCB, Surface Mount
2
2
30 V
Cut Tape
1.7 W
No
No
480 mΩ
Compliant
8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040
710 µm
Brass
SMD/SMT
500 ms
2.2 A
30 V
30 V
5.44 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹37.85
Total Price
₹113.55
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹113.55
₹113.55
10
₹34.94
₹349.44
25
₹34.94
₹873.60
50
₹28.99
₹1449.69
100
₹26.76
₹2675.81
500
₹22.18
₹11091.40
1000
₹20.46
₹20459.37
