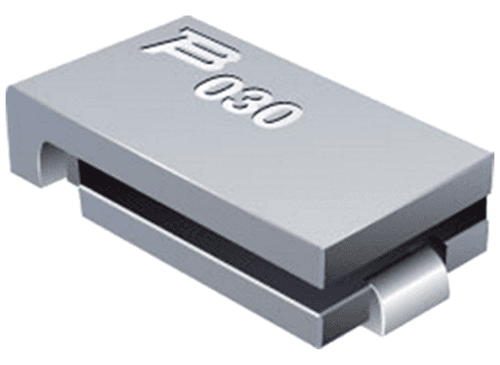

MF-SM250-2
Manufacturer
Bourns
Description
PTC Resettable Fuse 2.5A(hold) 5A(trip) 15V 100A 1.9W 25s 0.024Ohm SMD Solder
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Current Rating
Hold Current
Lead Free
Lead Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Terminal Material
Termination
Time to Trip
Trip Current
Voltage Rating
Voltage Rating (DC)
Width
Description
CSA, TUV, UL
SMD/SMT
2.5 A
2.5 A
Lead Free
430 µm
100 A
85 °C
-40 °C
PCB, Surface Mount
2
2
15 V
Cut Tape
1.9 W
No
No
85 mΩ
Compliant
8536100040, 8536100040|8536100040, 8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040
Brass
SMD/SMT
25 s
5 A
15 V
15 V
6.71 mm
₹51.24
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹39.25
₹392.54
25
₹39.27
₹981.79
50
₹32.63
₹1631.44
100
₹30.09
₹3009.43
500
₹24.96
₹12479.68
1000
₹20.74
₹20743.05
