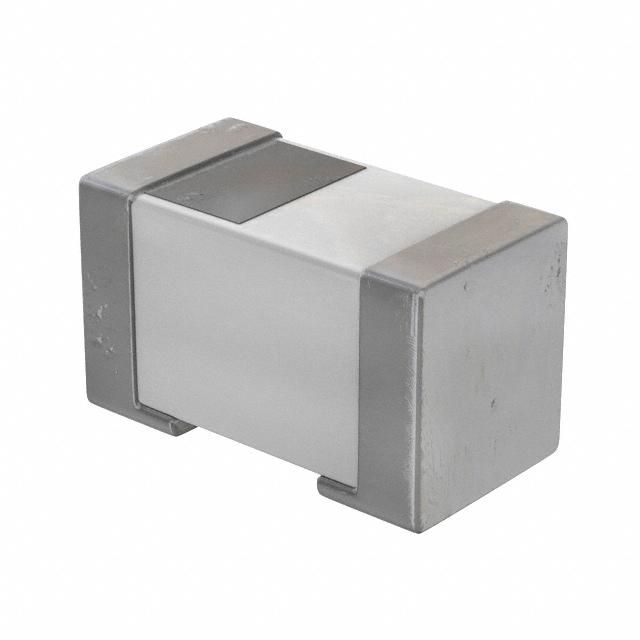

MHQ1005P15NJT000
Manufacturer
TDK
Description
15 nH Unshielded Multilayer Inductor 400 mA 280mOhm Max 0402 (1005 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ceramic, Non-Magnetic
15 nH
±5%
400 mA
Unshielded
280mOhm Max
23 @ 250MHz
2.3GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.024" (0.60mm)
₹15.82
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹12.99
₹129.93
25
₹12.92
₹323.00
50
₹12.94
₹646.90
100
₹10.60
₹1059.57
500
₹10.59
₹5296.94
1000
₹8.71
₹8712.63
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ceramic, Non-Magnetic
15 nH
±5%
400 mA
Unshielded
280mOhm Max
23 @ 250MHz
2.3GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.024" (0.60mm)
