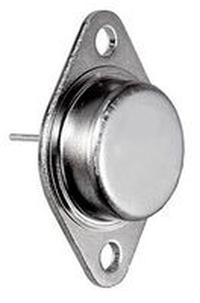

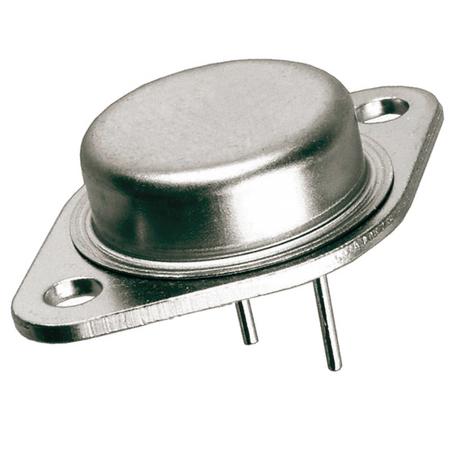

MJ11033G

Manufacturer

onsemi

Description

50 A, 120 V PNP Darlington Bipolar Power Transistor

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Collector Base Voltage (VCBO)

Collector Emitter Breakdown Voltage

Collector Emitter Saturation Voltage

Collector Emitter Voltage (VCEO)

Continuous Collector Current

Current Rating

Element Configuration

Emitter Base Voltage (VEBO)

Height

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Collector Current

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Number of Elements

Number of Pins

Polarity

Power Dissipation

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Voltage Rating (DC)

Width

Description

TO-204-3

120 V

120 V

2.5 V

120 V

50 A

50 A

Single

5 V

8.51 mm

Lead Free

38.86 mm

Production (Last Updated: 4 years ago)

ACTIVE (Last Updated: 4 years ago)

50 A

200 °C

300 W

-55 °C

1

2

PNP

300 W

No

No SVHC

Compliant

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

-120 V

26.67 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹1013.95

Total Price

₹1013.95

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹1013.95

₹1013.95

10

₹808.71

₹8087.06

25

₹808.71

₹20217.65

50

₹776.17

₹38808.37

100

₹743.63

₹74362.86
