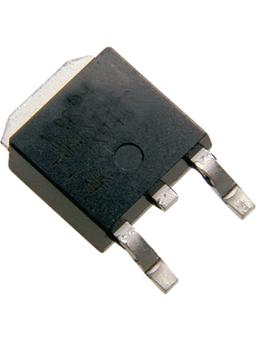

MJD32CT4
Manufacturer
STMicroelectronics
Description
Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 2 Pin
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Height
hFE Min
Lead Free
Length
Max Breakdown Voltage
Max Collector Current
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
TO-252
100 V
100 V
-1.2 V
100 V
Tin
-3 A
Single
5 V
2.4 mm
20
Lead Free
6.6 mm
100 V
3 A
150 °C
15 W
-65 °C
Surface Mount
1
3
Cut Tape
PNP
15 W
No
No
Compliant
8541290080
-100 V
4.535924 g
6.2 mm
₹97.91
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹58.34
₹583.36
25
₹58.34
₹1458.41
50
₹58.34
₹2916.82
100
₹37.95
₹3795.29
500
₹29.29
₹14642.95
1000
₹21.93
₹21935.00
