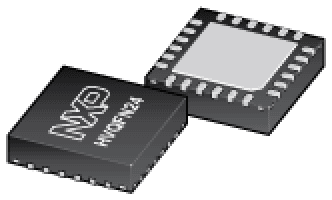

MKL05Z16VFK4
Manufacturer
NXP Semiconductors
Description
MCU 32-bit Kinetis KL05 ARM Cortex M0+ RISC 16KB Flash 1.8V/2.5V/3.3V 24-Pin QFN EP Tray
Datasheet
DownloadProduct Attributes
Type
Case/Package
Clock Rate
Core Architecture
Data Bus Width
EEPROM Memory Size
Frequency
Height
Height - Seated (Max)
Interface
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of SPI Channels
Number of Terminals
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
RAM Size
REACH SVHC
RoHS
Terminal Pitch
Watchdog Timer
Weight
Width
Description
QFN
32 MHz
ARM
32 b
0 B
48 MHz
1 mm
1 mm
I2C, SPI
4 mm
Production (Last Updated: 8 months ago)
48 MHz
105 °C
6.8 mA
3.6 V
16 kB
FLASH
-40 °C
1.71 V
Surface Mount
12
1
22
24
22
1
24
6
3.3 V
Internal
Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT
2 kB
Yes
Compliant
500 µm
Yes
15.790684 mg
4 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
