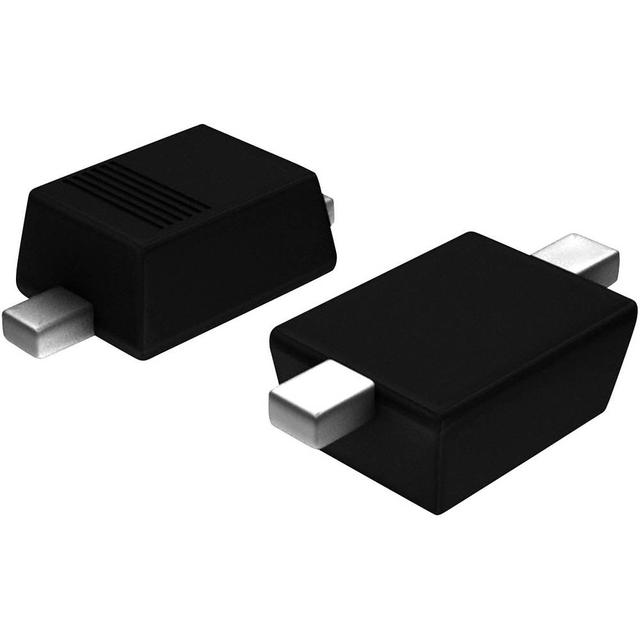

MM3Z13VC
Manufacturer
onsemi
Description
MM3Z Series 13 V 200 mW 10 mA Surface Mount Zener Diode - SOD-323-F
Datasheet
DownloadProduct Attributes
Type
China RoHS
Element Configuration
Forward Voltage
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Reverse Current
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
Reference Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Tolerance
Weight
Width
Working Voltage
Zener Current
Zener Voltage
Description
Compliant
Single
1 V
1 mm
28 Ω
Lead Free
1.3 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
200 mW
90 nA
-65 °C
Surface Mount
1
2
2
Tape & Reel (TR)
90 nA
Unidirectional
200 mW
No
Yes
13 V
Compliant
8541100050
5 mA
5 %
5 %
27.6 mg
1.7 mm
13 V
5 mA
13 V
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹14.86
Total Price
₹103.99
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.87
₹104.87
10
₹10.76
₹107.61
25
₹9.82
₹245.44
50
₹9.82
₹490.88
100
₹4.75
₹475.02
500
₹4.65
₹2325.75
1000
₹4.54
₹4544.86
