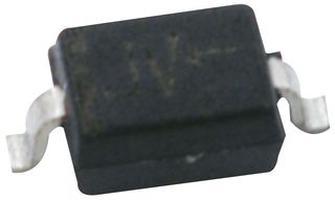

MM3Z7V5ST1G
Manufacturer
onsemi
Description
MM3Z7V5ST1G Zener Diode, 7.6V 2% 300 mW SMT 2-Pin SOD-323 | ON Semiconductor MM3Z7V5ST1G
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Element Configuration
Forward Current
Halogen Free
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reference Voltage
Reverse Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Rating (DC)
Voltage Tolerance
Width
Zener Current
Zener Voltage
Description
SOD-323-2
Compliant
Single
10 mA
Halogen Free
1.1 mm
15 Ω
Lead Free
1.8 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
Plastic
150 °C
150 °C
300 mW
1 µA
-65 °C
1
2
2
Tape and Reel
Unidirectional
300 mW
200 mW
No
Yes
7.5 V
5 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
5 mA
2 %
7.5 V
2.15 %
1.35 mm
5 mA
7.5 V
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹12.02
Total Price
₹108.17
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.04
₹111.04
10
₹10.08
₹100.76
25
₹6.72
₹167.93
50
₹6.72
₹335.85
100
₹2.91
₹291.47
500
₹2.87
₹1433.37
1000
₹2.85
₹2854.53
