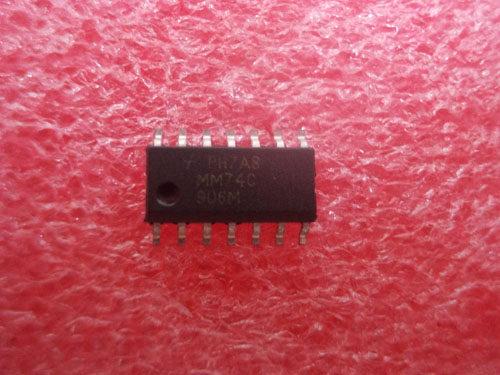

MM74C906M
Manufacturer
onsemi
Description
Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin SOIC N Rail
Datasheet
DownloadProduct Attributes
Type
Case/Package
Height - Seated (Max)
Length
Lifecycle Status
Logic Function
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Turn-On Delay Time
Width
Description
SOIC
1.75 mm
8.65 mm
Obsolete (Last Updated: 9 months ago)
Buffer, Inverting
85 °C
500 mW
15 V
-40 °C
3 V
Surface Mount
6
1
6
6
6
6
1
6
6
14
14
5 V
Bulk
Non-Inverting
150 ns
15 µA
No
Compliant
No
1.27 mm
150 ns
3.9 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
