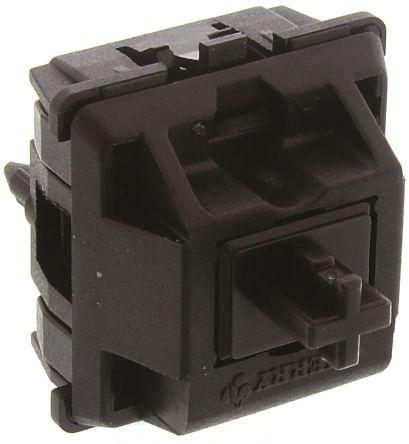

MX1A-11NW
Manufacturer
Cherry
Description
Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.58N PC Pins 50000000Cycles Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Case/Package
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Electrical Life
Flammability Rating
Housing Material
Illumination Type
Insulation Resistance
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operating Force
Packaging
REACH SVHC
RoHS
Row Spacing
Switch Function
Switching Current
Terminal Pitch
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
3.6 mm
Module
10 mA
Gold, Silver
Gold
200 mΩ
10 mA
50 Mcycles
UL94 HB
Thermoplastic
Illuminated
100 MΩ
Lead Free
15.6 mm
100 mA
70 °C
12 V
12 V
-10 °C
PCB, Through Hole
2
2
580 mN
Bulk
Unknown
Compliant
6.35 mm
Off-Mom
10 mA
2.54 mm
PC Pin
SPST
12 V
12 V
15.6 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
