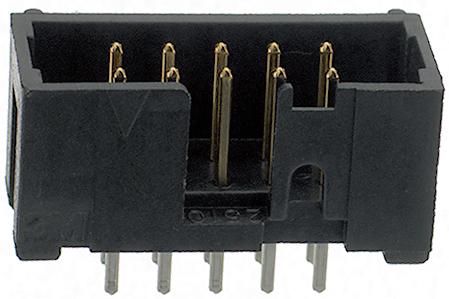

N2550-6002RB
Manufacturer
3M
Description
2500 ROHS3Compliant 2009 Keying Slot Connector Header -55C~105C 1.75A 30.0muin 0.76mum
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Flammability Rating
Gender
Height
Hole Diameter
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RMS Current (Irms)
RoHS
Row Spacing
Termination
Voltage Rating (AC)
Working Voltage
Description
UL
Black
Male Pin
6.1722 mm
Gold
20 mΩ
2 A
8.59 mm
UL94 V-0
Male
9.91 mm
890 µm
Black
Polychlorinated
1 GΩ
Lead Free
2.54 mm
70.82 mm
2 A
105 °C
-55 °C
Through Hole
50
50
50
50
2
Straight
2.54 mm
No SVHC
1 A
Compliant
2.54 mm
Solder
350 V
350 V
₹427.79
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹427.79
₹427.79
10
₹393.35
₹3933.54
25
₹357.87
₹8946.85
50
₹357.87
₹17893.70
100
₹357.87
₹35787.39
500
₹332.65
₹166322.75
1000
₹307.84
₹307842.60
