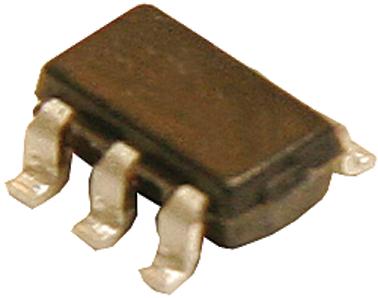

NC7S08M5
Manufacturer
onsemi
Description
TINYLOGIC HS 2-INPUT AND GATE AND Gate, HC/UH Series, 1-Func, 2-Input, CMOS, PDSO5
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Height
Height - Seated (Max)
High Level Output Current
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Inputs
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schmitt Trigger Input
Terminal Pitch
Turn-On Delay Time
Weight
Width
Description
SOT-23
Compliant
Tin
1.3 mm
1.4 mm
-2.6 mA
2.9 mm
Obsolete (Last Updated: 9 months ago)
50 pF
AND
20 µA
85 °C
6 V
-40 °C
2 V
Surface Mount
1
1
1
1
2
1
5
5
3 V
2.6 mA
Cut Tape
125 ns
1 µA
No
Yes
Compliant
No
950 µm
125 ns
30 mg
1.6 mm
Out of Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹50.16
Total Price
₹100.32
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹100.32
₹100.32
10
₹50.16
₹501.62
25
₹50.16
₹1254.04
50
₹43.82
₹2190.83
100
₹28.31
₹2831.22
500
₹24.56
₹12278.25
1000
₹22.67
₹22673.30
