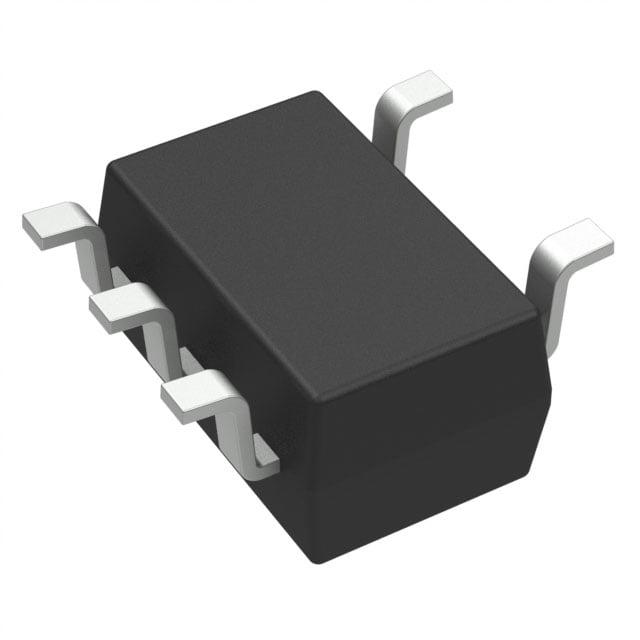

NCP716BCSN300T1G
Manufacturer
onsemi
Description
ONSEMI - NCP716BCSN300T1G - LDO Voltage Regulator, Fixed, 2.5-24V in, 700 mV Drop, 3 V/0.15 A out, TSOP-5, -40 C to 125 C
Datasheet
DownloadProduct Attributes
Type
Output Configuration
Output Type
Number of Regulators
Max Input Voltage
Voltage - Output 2
Voltage Dropout (Max)
Output Current
Quiescent Current
PSRR
Protection Features
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Positive
Fixed
1
24V
3V
1.1V @ 150mA
150mA
4.7 µA
55dB (1kHz)
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
150°C (TJ)
Surface Mount
SOT-23-5 Thin, TSOT-23-5
5-TSOP
₹88.41
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹57.87
₹578.70
25
₹57.87
₹1446.74
50
₹57.87
₹2893.49
100
₹47.91
₹4790.94
500
₹45.55
₹22776.60
1000
₹42.94
₹42935.20
Product Attributes
Type
Output Configuration
Output Type
Number of Regulators
Max Input Voltage
Voltage - Output 2
Voltage Dropout (Max)
Output Current
Quiescent Current
PSRR
Protection Features
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Positive
Fixed
1
24V
3V
1.1V @ 150mA
150mA
4.7 µA
55dB (1kHz)
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
150°C (TJ)
Surface Mount
SOT-23-5 Thin, TSOT-23-5
5-TSOP
