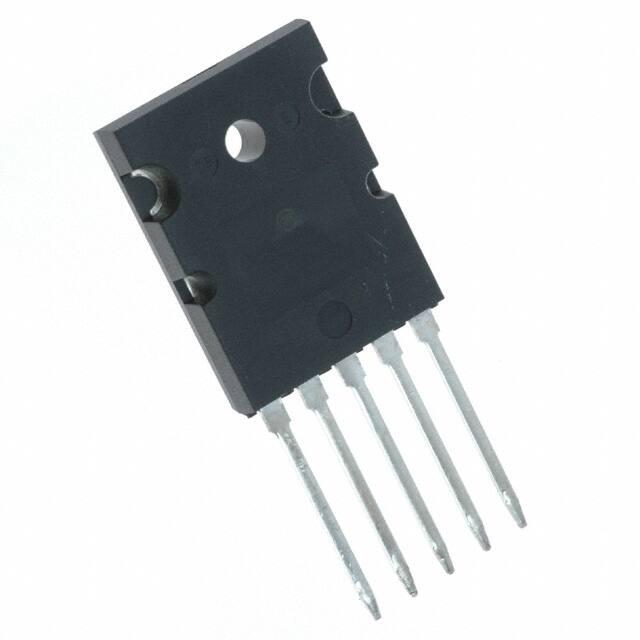

NJL0281DG
Manufacturer
onsemi
Description
Transistor, bjt, npn, 260V V(Br)Ceo, 15A I(C), to-264 Rohs Compliant: Yes |Onsemi NJL0281DG
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Polarity
Power Dissipation
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Width
Description
TO-264
260 V
260 V
1 V
260 V
-15 A
Single
5 V
30 MHz
30 MHz
28.624 mm
75
Lead Free
20.02 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
15 A
150 °C
150 °C
180 W
-65 °C
Through Hole
1
5
NPN
180 W
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
30 MHz
-260 V
5.182 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹689.13
Total Price
₹689.13
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹689.13
₹689.13
10
₹624.13
₹6241.30
25
₹456.12
₹11403.10
50
₹456.12
₹22806.20
100
₹382.31
₹38231.15
