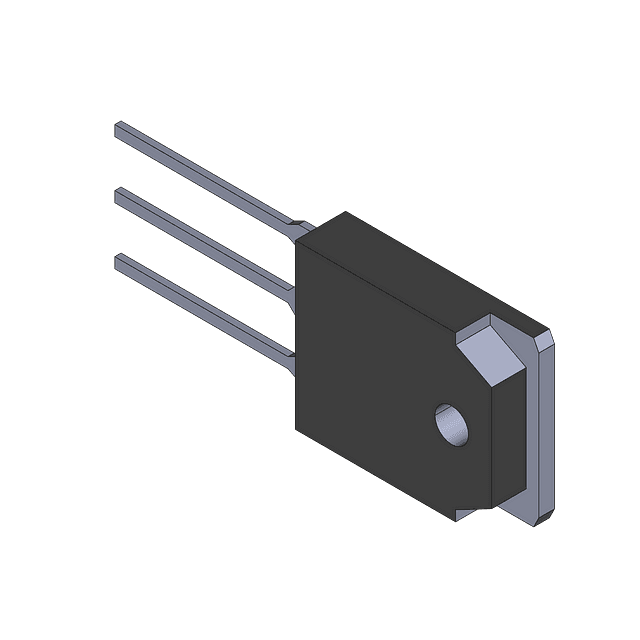

NJW44H11G
Manufacturer
onsemi
Description
NPN Power Bipolar Transistor, 80 V, 10 A NPN TO-3P POWER TRANS
Datasheet
DownloadProduct Attributes
Type
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Continuous Collector Current
Element Configuration
Emitter Base Voltage (VEBO)
Gain Bandwidth Product
Height
hFE Min
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Polarity
Power Dissipation
Radiation Hardening
RoHS
Transition Frequency
Description
80 V
1 V
80 V
10 A
Single
5 V
85 MHz
23.8 mm
100
Lead Free
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
10 A
150 °C
150 °C
120 W
-65 °C
Through Hole
1
3
NPN
120 W
No
Compliant
85 MHz
In Stock
Quantity
MOQ : 1
Per Unit Price
₹335.23
Total Price
₹335.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹335.23
₹335.23
10
₹304.46
₹3044.62
25
₹304.46
₹7611.55
50
₹192.19
₹9609.58
100
₹192.19
₹19219.17
