NK236
Manufacturer
APEM
Description

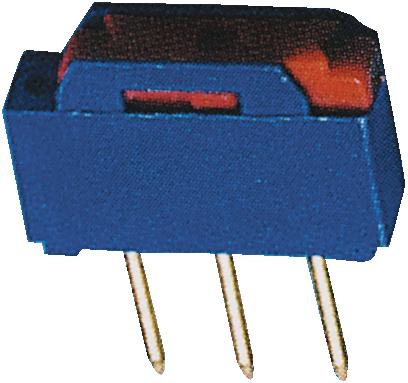

Switch Slide ON ON SPDT Flush Slide 0.5A 12VAC 12VDC PC Pins Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
Flammability Rating
Height
Insulation Resistance
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Positions
Orientation
Packaging
RoHS
Switch Function
Switch Travel
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
Glass, Glass fibre, Nylon, Polyamide
500 mA
Gold, Nickel
Gold
20 mΩ
12 V
500 mA
2.6 mm
2 kcycles
UL94 V-0
6.5 mm
10 GΩ
10 mm
2 kcycles
Production (Last Updated: 7 months ago)
500 mA
85 °C
12 V
12 V
-40 °C
Through Hole
3
Straight
Bulk
Compliant
On-On
1.6 mm
PC Pin
SPDT
12 V
12 V
2.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹262.31
Total Price
₹262.31
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹262.31
₹262.31
10
₹254.93
₹2549.34
25
₹254.92
₹6372.90
50
₹254.92
₹12745.79
100
₹200.51
₹20051.46
500
₹168.52
₹84258.81
1000
₹158.92
₹158918.71
