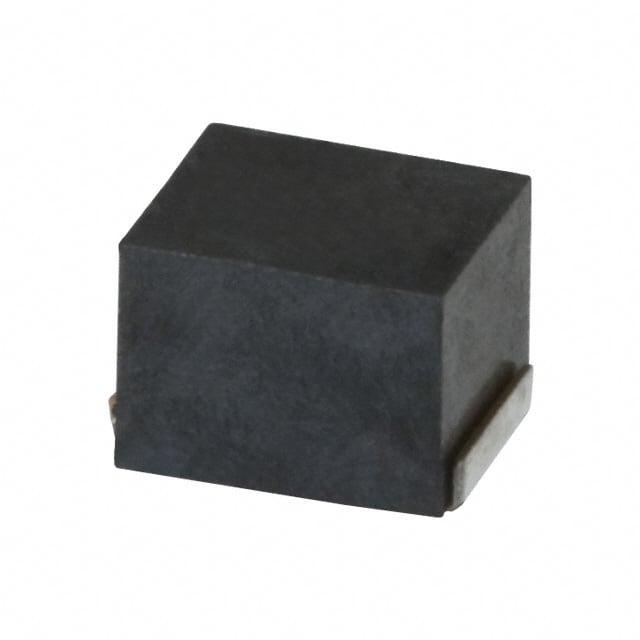

NLV32T-470J-PF
Manufacturer
TDK
Description
47 H Unshielded Drum Core, Wirewound Inductor 60 mA 7Ohm Max 1210 (3225 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±5%
60 mA
Unshielded
7Ohm Max
30 @ 2.52MHz
15MHz
-40°C ~ 105°C
2.52 MHz
Surface Mount
1210 (3225 Metric)
1210
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.094" (2.40mm)
₹21.96
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.57
₹175.68
25
₹17.60
₹440.12
50
₹17.57
₹878.40
100
₹14.40
₹1440.21
500
₹14.40
₹7201.97
1000
₹10.50
₹10497.80
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±5%
60 mA
Unshielded
7Ohm Max
30 @ 2.52MHz
15MHz
-40°C ~ 105°C
2.52 MHz
Surface Mount
1210 (3225 Metric)
1210
0.126" L x 0.098" W (3.20mm x 2.50mm)
0.094" (2.40mm)
