NSVBAT54WT1G
Manufacturer
onsemi
Description

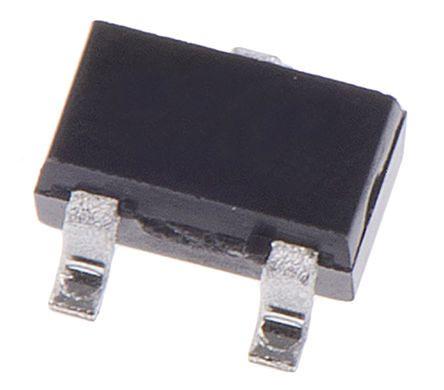

NSVBAT54 Series 30 V 200 mA Surface Mount Schottky Barrier Diode - SOT-323
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Width
Description
200 mA
SOT-323-3
Compliant
Single
200 mA
800 mV
Halogen Free
900 µm
Lead Free
2.2 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
600 mA
125 °C
200 mA
200 mW
30 V
30 V
30 V
-55 °C
1
3
3
Tape and Reel
600 mA
2 µA
200 mW
No
Yes
5 ns
25 V
Compliant
8541100070, 8541100070|8541100070, 8541100070|8541100070|8541100070, 8541100070|8541100070|8541100070|8541100070
1.35 mm
In Stock
Quantity
MOQ : 7
Minimum Qty : 7
Per Unit Price
₹14.87
Total Price
₹104.10
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.98
₹104.98
10
₹10.41
₹104.10
25
₹10.37
₹259.37
50
₹10.36
₹517.85
100
₹7.19
₹718.99
500
₹6.42
₹3212.09
1000
₹5.93
₹5925.74
