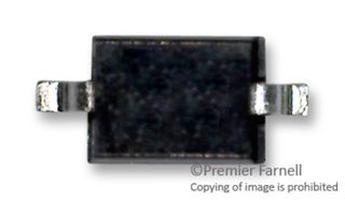

NSVR0340HT1G
Manufacturer
onsemi
Description
NSVR03 Series 40 V 1 A Surface Mount Schottky Barrier Diode - SOD-323
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Element Configuration
Forward Current
Height
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Description
250 mA
6 pF
SOD
Tin
Single
250 mA
1.1 mm
Lead Free
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
1 A
150 °C
150 °C
40 V
40 V
-55 °C
Surface Mount
2
1 A
1.3 µA
5 ns
40 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
₹7.32
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
25
₹7.34
₹183.46
50
₹7.36
₹367.83
100
₹7.36
₹735.66
500
₹7.35
₹3676.47
1000
₹7.02
₹7023.54
