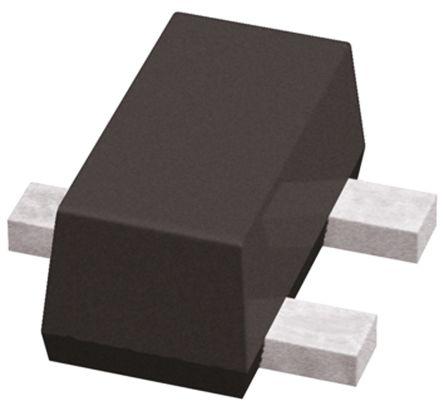

NTE4151PT1G
Manufacturer
onsemi
Description
NTE4151P: Small Signal MOSFET 20V 760mA 360 mOhm Single P-Channel SC-89 with ESD Protection
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Number of Channels
Number of Elements
Number of Pins
Number of Terminals
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
SC-89
Compliant
760 mA
-760 mA
-20 V
360 mΩ
-20 V
Single
8.2 ns
6 V
800 µm
156 pF
Lead Free
1.6764 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
150 °C
313 mW
20 V
-55 °C
1
1
3
3
Tape and Reel
313 mW
No
360 mΩ
Yes
260 mΩ
8.2 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
29 ns
8 ns
-20 V
950 µm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹40.90
Total Price
₹122.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹122.71
₹122.71
10
₹23.47
₹234.75
25
₹23.49
₹587.32
50
₹23.49
₹1174.63
100
₹12.94
₹1293.79
500
₹12.94
₹6469.82
1000
₹11.23
₹11227.04
