NTST30120CTG
Manufacturer
onsemi
Description

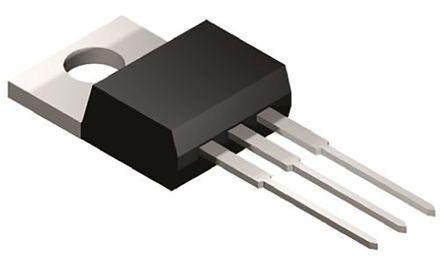

ON Semi NTST30120CTG; Dual Schottky Diode; Common Cathode; 120V 30A; 4-Pin TO-220AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Width
Description
15 A
TO-220-3
Non-Compliant
Common Cathode
30 A
760 mV
9.28 mm
Lead Free
10.28 mm
Obsolete (Last Updated: 6 months ago)
OBSOLETE (Last Updated: 6 months ago)
150 A
150 °C
15 A
120 V
120 V
60 A
-40 °C
2
3
3
150 A
800 µA
No
No
120 V
Compliant
8541100080
4.82 mm
₹219.60
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹219.60
₹219.60
10
₹166.80
₹1668.05
