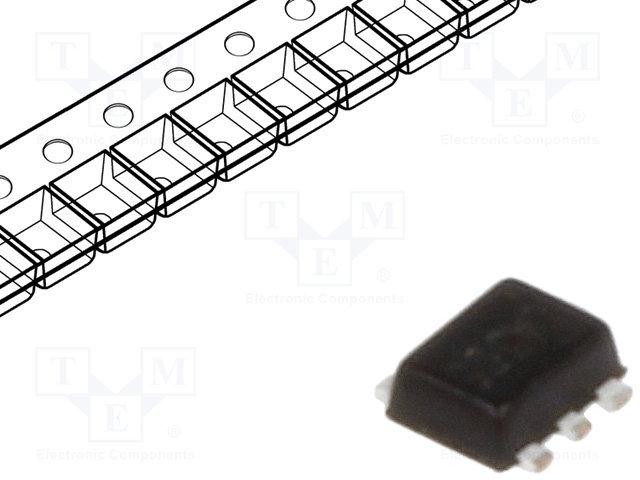

NTZD3152PT1G
Manufacturer
onsemi
Description
Dual P-Channel Small Signal MOSFET with ESD Protection -20V, -430mA, 900m
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
SOT-563
Compliant
430 mA
-430 mA
-20 V
900 mΩ
Dual
12 ns
6 V
600 µm
175 pF
Lead Free
1.7 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
280 mW
20 V
-55 °C
2
6
6
Tape and Reel
250 mW
No
900 mΩ
Yes
500 mΩ
12 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080
35 ns
10 ns
-20 V
1.3 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹38.24
Total Price
₹114.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹114.71
₹114.71
10
₹21.43
₹214.30
25
₹21.39
₹534.85
50
₹21.41
₹1070.60
100
₹10.28
₹1027.91
500
₹10.28
₹5137.80
1000
₹9.42
₹9419.30
