NTZD5110NT1G
Manufacturer
onsemi
Description

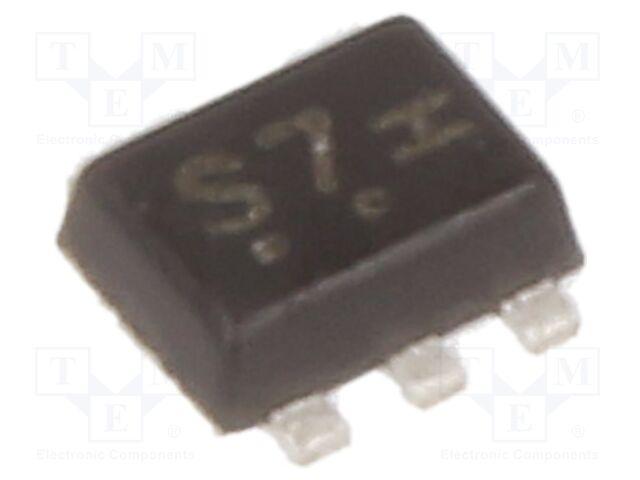

NTZD5110N: Small Signal MOSFET 60V 310mA 1.6 Ohm Dual N-Channel SOT-563 with ESD Protection
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
Resistance
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
SOT-563
Tin
294 mA
60 V
60 V
Dual
7.3 ns
20 V
600 µm
295 pF
Lead Free
1.7 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
900 mW
-55 °C
2
6
Tape and Reel
250 mW
No
90 mΩ
1.6 Ω
7.3 ns
Compliant
8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|8541210080|85
63.7 ns
12 ns
1.3 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹34.99
Total Price
₹104.98
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.86
₹105.86
10
₹23.64
₹236.43
25
₹23.61
₹590.19
50
₹23.61
₹1180.38
100
₹14.64
₹1463.57
500
₹11.10
₹5550.80
1000
₹8.21
₹8212.40
