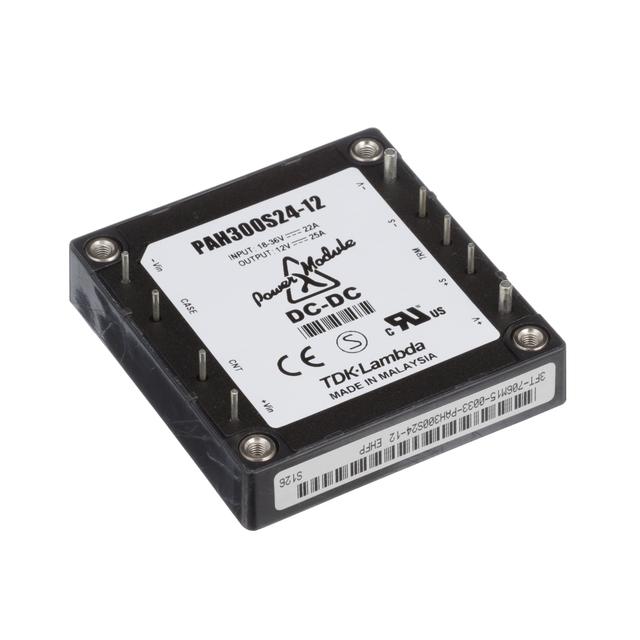

PAH300S2412

Manufacturer

TDK-Lambda

Description

DC-DC Converters, Power module type (with baseplate), Output: 300W, 12V, Isolated type

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Current - Output 1

Depth

Efficiency

Features

Height

Isolation

Isolation Voltage

Length

Lifecycle Status

Max Input Voltage

Max Operating Temperature

Max Output Current

Max Power Dissipation

Min Input Voltage

Min Operating Temperature

Mount

Number of Outputs

Number of Pins

Output Current

Output Power

Output Voltage

Radiation Hardening

RoHS

Schedule B

Voltage - Output 1

Width

Description

Module

25 A

57.9 mm

87 %

OCP, OVP

12.7 mm

Isolated

1.5 kV

61 mm

Production (Last Updated: 2 years ago)

36 V

100 °C

25 A

300 W

18 V

-40 °C

PCB, Through Hole

1

9

25 A

300 W

12 V

No

Compliant

8504409530, 8504409530|8504409530|8504409530|8504409530|8504409530

12 V

61 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹14915.44

Total Price

₹14915.44


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

14915.44

14915.44

10

14080.84

140808.38

25

14080.84

352020.94

50

13825.92

691296.09
