PAT0805E3011BST5
Manufacturer
Vishay
Description

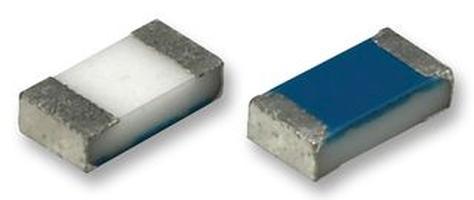

Surface Mount Chip Resistor, Thin Film, PAT Series, 3.01 kohm, 200 mW, 0.1%, 100 V
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Height
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Packaging
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Working Voltage
Description
0805
0805
2012
Thin Film
381 µm
Production (Last Updated: 9 months ago)
155 °C
-55 °C
Surface Mount
2
Cut Tape
200 mW
200 mW
Yes
3.01 kΩ
Compliant
25 ppm/°C
0.1 %
100 V
100 V
1.27 mm
100 V
₹225.09
Out of Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹225.09
₹225.09
10
₹157.65
₹1576.55
25
₹157.64
₹3940.91
50
₹117.49
₹5874.30
100
₹111.61
₹11161.17
500
₹111.61
₹55805.85
1000
₹98.88
₹98884.05
