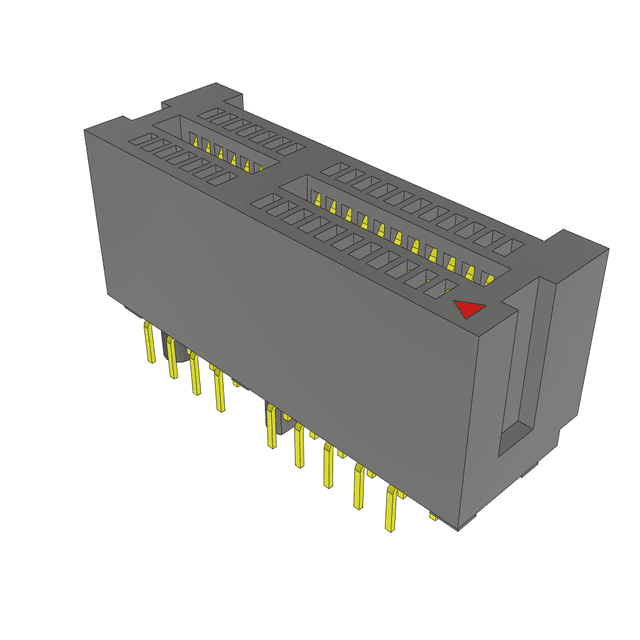

PCIE-036-02-F-D-TH

Manufacturer

Samtec

Description

Card Edge Connector, PCIE, Dual Side, 1.57 mm, 36 Contacts, Through Hole Mount, Straight

Datasheet

download datasheetDownload

Product Attributes

Type

Contact Material

Contact Plating

Current Rating

Depth

Gender

Housing Color

Housing Material

Insulation Material

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Pins

Number of Rows

Orientation

Packaging

Pitch

Radiation Hardening

REACH SVHC

RoHS

Termination

Width

Description

Bronze

Gold

2.5 A

11 mm

Receptacle

Black

Nylon

Nylon

25 mm

Production (Last Updated: 3 years ago)

PRODUCTION (Last Updated: 3 years ago)

125 °C

-55 °C

Through Hole

36

36

2

Straight

Bulk

1 mm

No

No

Compliant

Solder

7.5 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹204.52

Total Price

₹204.52


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

204.52

204.52

10

204.78

2047.83

25

204.80

5120.01

50

166.39

8319.35

100

141.85

14185.41

500

204.78

102390.49

1000

125.85

125854.70
