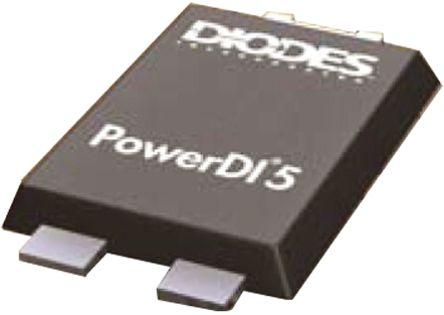

PDS340-13
Manufacturer
Diodes Inc.
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
3 A
Non-Compliant
3 A
Common Anode
3 A
420 mV
1.15 mm
Lead Free
4.05 mm
Production (Last Updated: 9 months ago)
90 A
150 °C
3 A
40 V
40 V
-65 °C
Surface Mount
1
3
3 A
Cut Tape
90 A
500 µA
Standard
No
No
1 ns
40 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
SMD/SMT
40 V
95.991485 mg
5.45 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹68.81
Total Price
₹137.62
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹137.62
₹137.62
10
₹57.43
₹574.31
25
₹57.38
₹1434.46
50
₹57.40
₹2869.80
100
₹51.71
₹5170.57
500
₹45.17
₹22586.08
1000
₹37.38
₹37380.58
