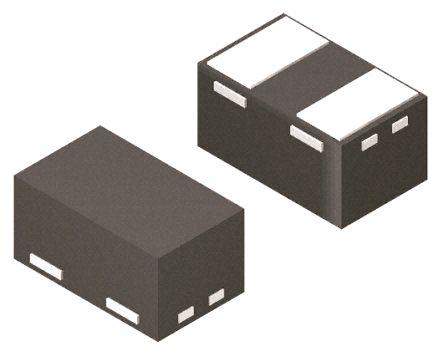

PESD12VV1BL,315
Manufacturer
Nexperia
Description
PESD12VV1BL - Very low capacitance bidirectional ESD protection diode
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Capacitance
Case/Package
Clamping Voltage
Composition
Depth
Direction
Element Configuration
Leakage Current
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Bidirectional Channels
Number of Channels
Number of Pins
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Radiation Hardening
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Working Voltage
Description
14.6 V
25 pF
DFN
38 V
Zener
620 µm
Bidirectional
Single
10 nA
1.02 mm
Production (Last Updated: 13 hours ago)
RELEASED FOR SUPPLY (Last Updated: 13 hours ago)
150 °C
290 W
14.6 V
-55 °C
Surface Mount
1
1
2
Tape & Reel (TR)
7.8 A
290 W
Bidirectional
No
No
12 V
Compliant
8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000
SMD/SMT
12 V
In Stock
Quantity
MOQ : 6
Per Unit Price
₹17.78
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹11.96
₹119.58
25
₹11.96
₹298.97
50
₹11.96
₹597.94
100
₹5.87
₹586.87
500
₹5.39
₹2693.39
1000
₹4.68
₹4677.93
