PESD3V3S1UB,115
Manufacturer
Nexperia
Description

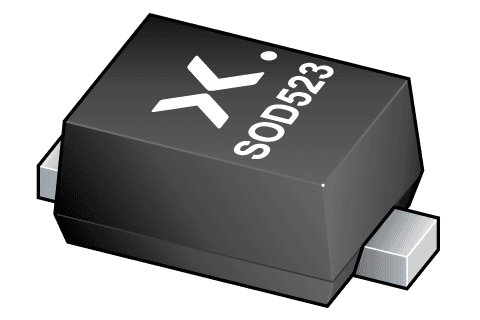

Transil Diode (TVS); 330W; 6V; 18A; unidirectional; -65+105 deg.C; SMD; SOD523-2
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Breakdown Voltage
China RoHS
Clamping Voltage
Contact Plating
Direction
Height
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Operating Supply Voltage
Peak Pulse Current
Peak Pulse Power
Polarity
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Description
150 °C
5.6 V
Compliant
20 V
Tin
Unidirectional
650 µm
Production (Last Updated: 7 months ago)
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
6 V
150 °C
150 °C
5.2 V
-65 °C
1
2
2
3.3 V
18 A
330 W
Unidirectional
Yes
3.3 V
Compliant
8536300000, 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
In Stock
Quantity
MOQ : 3
Per Unit Price
₹35.57
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹20.44
₹204.39
25
₹20.44
₹510.98
50
₹14.84
₹741.87
100
₹9.07
₹906.98
500
₹8.19
₹4096.20
1000
₹8.19
₹8192.38
