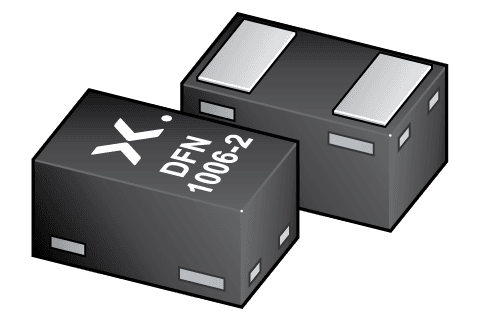

PESD3V3S1UL,315
Manufacturer
Nexperia
Description
PESD Series 20 V 300 pF SMT Uni-Directional ESD Protection Diode - SOD-882
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Capacitance
Case/Package
Clamping Voltage
Composition
Depth
Direction
Element Configuration
Lead Free
Leakage Current
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Operating Temperature
Max Power Dissipation
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Number of Unidirectional Channels
Operating Supply Voltage
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Radiation Hardening
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Working Voltage
Description
5.2 V
300 pF
DFN
20 V
Zener
620 µm
Unidirectional
Single
Lead Free
2 µA
1.02 mm
Production (Last Updated: 10 months ago)
RELEASED FOR SUPPLY (Last Updated: 10 months ago)
6 V
150 °C
150 W
15 A
5.2 V
-65 °C
Surface Mount
1
1
2
1
3.3 V
15 A
150 W
Unidirectional
No
No
5.2 V
3.3 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
5 mA
3.3 V
₹26.54
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.24
₹172.37
25
₹17.24
₹430.91
50
₹6.29
₹314.26
100
₹6.29
₹628.52
500
₹5.97
₹2986.68
1000
₹4.71
₹4713.92
