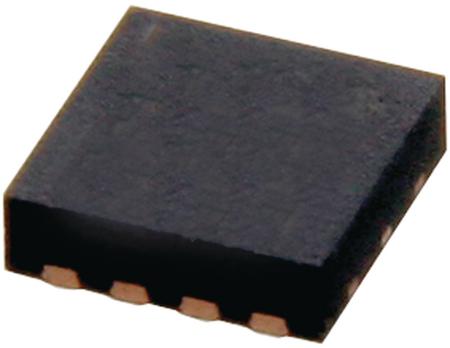

PIC12LF1501-E/MC
Manufacturer
Microchip
Description
IC MCU 8BIT 1.75KB FLASH 8DFN PIC PIC 12F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 8-DFN (2x3)
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Address Bus Width
Case/Package
Core Architecture
Country of Origin
Data Bus Width
Frequency
Height
Introduction Date
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of ADC Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of Timers/Counters
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Watchdog Timer
Width
Description
2039-02-15
8 b
DFN
PIC
Malaysia, Thailand
8 b
20 MHz
950 µm
2012-02-15
Lead Free
2 mm
Production (Last Updated: 4 years ago)
20 MHz
125 °C
800 mW
3.6 V
1.8 kB
FLASH
-40 °C
1.8 V
120 µA
4
5
8
6
4
3
POR, PWM, WDT
No
64 B
No
Compliant
Yes
3 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
