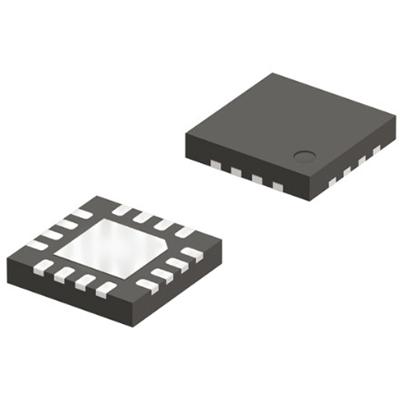

PIC16F1575-E/JQ
Manufacturer
Microchip
Description
IC MCU 8BIT 14KB FLASH 16UQFN PIC PIC 16F Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 16-UQFN (4x4)
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Core Architecture
Country of Origin
Data Bus Width
Frequency
Height
Interface
Introduction Date
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Memory Size
Memory Type
Min Operating Temperature
Mount
Number of ADC Channels
Number of I/Os
Number of Pins
Number of PWM Channels
Number of Timers/Counters
Number of UART Channels
Number of USB Channels
Operating Supply Voltage
Oscillator Type
Peripherals
RAM Size
RoHS
Width
Description
2039-06-15
PIC
Thailand
8 b
32 MHz
500 µm
LIN, UART, USART
2015-06-15
4 mm
Production (Last Updated: 4 years ago)
32 MHz
125 °C
14 kB
FLASH
-40 °C
Surface Mount
8
18
16
4
3
1
0
5.5 V
Internal
Brown-out Detect/Reset, POR, PWM, WDT
1 kB
Compliant
4 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
