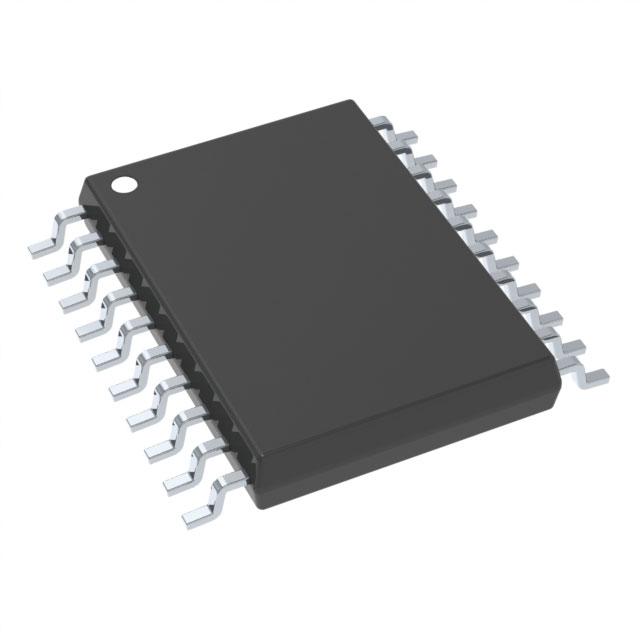

PIC16F1709-E/SS
Manufacturer
Microchip
Description
MCU 8-bit PIC16 PIC RISC 14KB Flash 3.3V/5V 20-Pin SSOP Tube/Tray
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Case/Package
Core Architecture
Country of Origin
Data Bus Width
Frequency
Height
Interface
Introduction Date
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Memory Size
Memory Type
Min Operating Temperature
Mount
Number of ADC Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of Timers/Counters
Number of UART Channels
Number of USB Channels
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
RoHS
Watchdog Timer
Width
Description
2039-02-04
SSOP
PIC
Philippines, Thailand
8 b
32 MHz
1.85 mm
I2C, LIN, RS-232, SPI, UART, USART
2014-02-04
5.6 mm
Production (Last Updated: 4 years ago)
32 MHz
125 °C
14 kB
FLASH
-40 °C
Surface Mount
12
18
20
18
2
5
1
0
5.5 V
Internal
Brown-out Detect/Reset, POR, PWM, WDT
No
1 kB
Compliant
Yes
5.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹158.63
Total Price
₹158.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹158.63
₹158.63
10
₹157.49
₹1574.88
25
₹157.51
₹3937.65
50
₹151.16
₹7558.03
100
₹150.10
₹15010.30
500
₹150.11
₹75053.27
1000
₹150.11
₹150107.42
