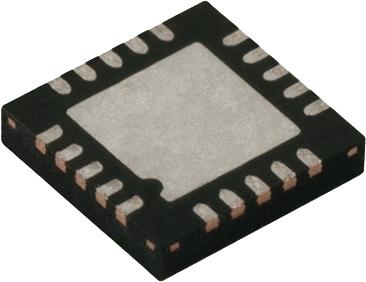

PIC16F690-I/ML
Manufacturer
Microchip
Description
MCU, 8-Bit, 4KW Flash, 256 RAM, 18 I/O, QFN-20 | Microchip Technology Inc. PIC16F690-I/ML
Datasheet
DownloadProduct Attributes
Type
Projected EOL Date
Access Time
Address Bus Width
Case/Package
Contact Plating
Core Architecture
Country of Origin
Data Bus Width
Frequency
Height
Interface
Introduction Date
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of A/D Converters
Number of ADC Channels
Number of Bits
Number of I2C Channels
Number of I/Os
Number of Outputs
Number of Pins
Number of Programmable I/O
Number of SPI Channels
Number of Timers/Counters
Number of UART Channels
Oscillator Type
Packaging
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Watchdog Timer
Width
Description
2034-10-04
20 µs
8 b
QFN
Tin
PIC
Malaysia, Thailand
8 b
20 MHz
950 µm
I2C, SPI, SSP, UART, USART
2005-10-04
Lead Free
4 mm
Production (Last Updated: 4 years ago)
20 MHz
85 °C
800 mW
5.5 V
7 kB
FLASH
-40 °C
4.5 V
Surface Mount
220 µA
1
12
8
1
18
17
20
18
1
3
1
Internal
Bulk
Brown-out Detect/Reset, I2C, POR, PWM, WDT
No
256 B
No SVHC
Compliant
8542310000
Yes
4 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹276.54
Total Price
₹276.54
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹276.54
₹276.54
10
₹277.34
₹2773.41
25
₹277.32
₹6933.09
50
₹277.31
₹13865.30
100
₹277.31
₹27730.59
500
₹277.31
₹138653.85
1000
₹277.31
₹277307.69
