PJ-002BH
Manufacturer
Same Sky (Formerly CUI Devices)
Description

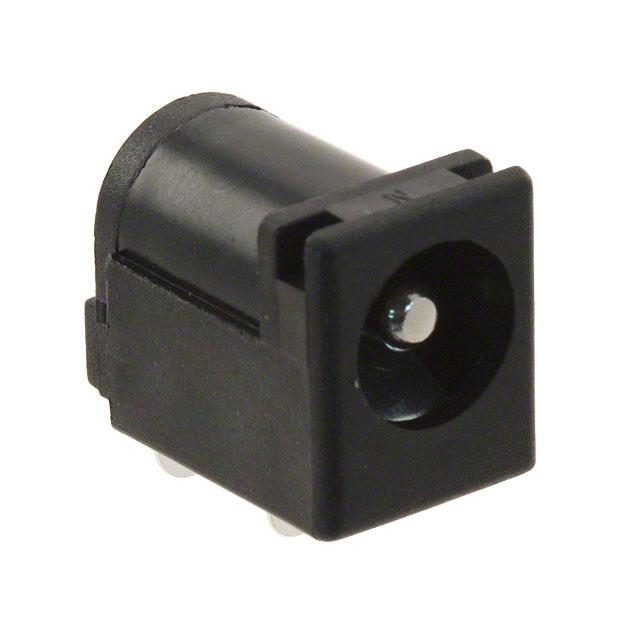

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
DownloadProduct Attributes
Type
Connector Type
Gender
Inside Diameter
Diameter
Contact Style
Internal Switch(s)
Mounting Type
Termination
Shielding
Features
Voltage
Current Rating (Amps)
Mating Post Length
Flammability Rating
Max Operating Temperature
Description
Jack
Male
2.50mm ID (0.098"), 5.50mm OD (0.217")
0.098" (2.50mm ID), 0.256" (6.50mm OD)
2 Conductors, 3 Contacts
Single Switch, Normally Closed
Through Hole, Right Angle
Solder Eyelet(s)
Unshielded
Board Guide, Solder Retention
24VDC
5 A
0.350" (8.90mm)
UL94 V-0
-25°C ~ 85°C
₹99.28
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹84.09
₹840.88
25
₹78.80
₹1969.99
50
₹75.05
₹3752.41
100
₹71.45
₹7145.23
500
₹64.79
₹32396.95
1000
₹61.70
₹61696.62
Product Attributes
Type
Connector Type
Gender
Inside Diameter
Diameter
Contact Style
Internal Switch(s)
Mounting Type
Termination
Shielding
Features
Voltage
Current Rating (Amps)
Mating Post Length
Flammability Rating
Max Operating Temperature
Description
Jack
Male
2.50mm ID (0.098"), 5.50mm OD (0.217")
0.098" (2.50mm ID), 0.256" (6.50mm OD)
2 Conductors, 3 Contacts
Single Switch, Normally Closed
Through Hole, Right Angle
Solder Eyelet(s)
Unshielded
Board Guide, Solder Retention
24VDC
5 A
0.350" (8.90mm)
UL94 V-0
-25°C ~ 85°C
