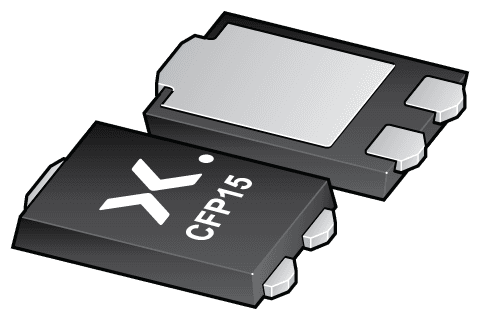

PMEG45A10EPDAZ
Manufacturer
Nexperia
Description
Schottky Rectifier, Single, 45 V, 10 A, Sot-1289, 3, 540 Mv Rohs Compliant: Yes
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Forward Current
Forward Voltage
Height
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Reverse Current
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Description
150 °C
10 A
715 pF
SMD/SMT
Tin
14 A
540 mV
820 µm
Production (Last Updated: 7 months ago)
RELEASED FOR SUPPLY (Last Updated: 7 months ago)
170 A
150 °C
150 °C
900 mW
45 V
-55 °C
Surface Mount
1
3
3
500 µA
No
13 ns
45 V
45 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹93.30
Total Price
₹186.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹186.60
₹186.60
10
₹72.35
₹723.52
25
₹72.32
₹1807.93
50
₹72.33
₹3616.74
100
₹50.01
₹5001.30
500
₹39.51
₹19755.21
1000
₹32.87
₹32869.31
