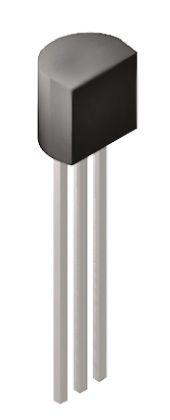

PN2907ATAR
Manufacturer
onsemi
Description
Bipolar Transistors - BJT PNP Transistor General Purpose
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Breakdown Voltage
Max Collector Current
Max Frequency
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Polarity
Power Dissipation
Radiation Hardening
RoHS
Transition Frequency
Voltage Rating (DC)
Weight
Width
Description
TO-92-3
-60 V
-60 V
-1.6 V
-60 V
-800 mA
Single
-5 V
200 MHz
200 MHz
8.77 mm
100
Lead Free
5.2 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
60 V
-800 mA
200 MHz
150 °C
150 °C
625 mW
-55 °C
Through Hole
1
3
PNP
625 mW
No
Compliant
200 MHz
-60 V
240 mg
4.19 mm
₹28.36
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.66
₹176.59
25
₹17.64
₹441.03
50
₹17.62
₹881.14
100
₹10.99
₹1098.91
500
₹8.10
₹4050.70
1000
₹7.17
₹7166.28
