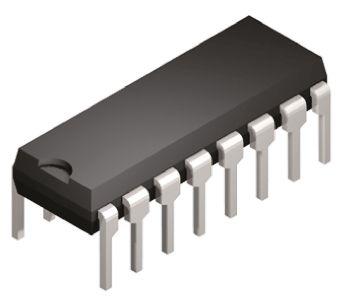

PS2501-4-A
Manufacturer
Renesas
Description
Optocoupler DC-IN 4-CH Transistor DC-OUT 16-Pin PDIP Magazine
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Dark Current
Fall Time
Forward Current
Forward Voltage
Height
Isolation Voltage
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Voltage
Reverse Voltage (DC)
Rise Time
RoHS
Description
DIP
Compliant
80 V
300 mV
300 mV
300 %
100 nA
5 µs
80 mA
1.4 V
4.55 mm
5 kV
Lead Free
NRND (Last Updated: 3 months ago)
NOT RECOMMENDED FOR NEW DESIGNS (Last Updated: 3 months ago)
50 mA
100 °C
80 V
240 mW
-55 °C
Through Hole
4
4
4
16
50 mA
80 V
240 mW
No
Yes
6 V
6 V
6 V
3 µs
Compliant
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
