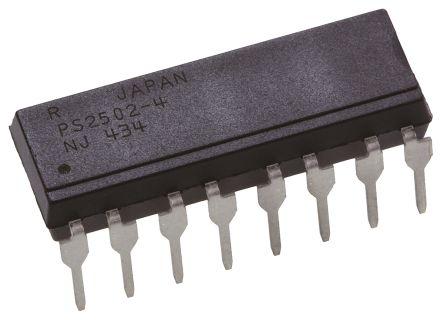

PS2502-4-A
Manufacturer
Renesas
Description
Optocoupler DC-IN 4-CH Darlington DC-OUT 16-Pin PDIP Magazine
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Export Control Classification Number (ECCN) Code
Fall Time
Part Family
Forward Current
Forward Voltage
Height
Harmonized Tariff Schedule (HTS) Code
Isolation Voltage
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Input Current
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
MSL
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Output Current per Channel
Output Voltage
Power Dissipation
Radiation Hardening
Reverse Breakdown Voltage
Reverse Voltage
Reverse Voltage (DC)
Rise Time
RoHS
Description
DIP
Compliant
1 V
1 V
2000 %
EAR99
100 µs
PS2502-4
80 mA
1.4 V
4.55 mm
85400000000
5 kV
Lead Free
NRND (Last Updated: 1 month ago)
NOT RECOMMENDED FOR NEW DESIGNS (Last Updated: 1 month ago)
160 mA
80 mA
100 °C
40 V
120 mW
-55 °C
1
Through Hole
4
4
4
16
160 mA
40 V
120 mW
No
6 V
6 V
6 V
100 µs
Compliant
₹377.89
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹377.89
₹377.89
10
₹255.74
₹2557.43
25
₹255.28
₹6382.13
50
₹255.28
₹12764.25
100
₹216.21
₹21621.45
500
₹190.40
₹95202.09
1000
₹174.51
₹174505.14
