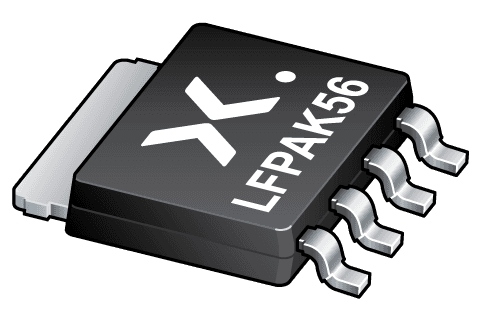

PSMN038-100YLX
Manufacturer
Nexperia
Description
Power Field-Effect Transistor, 30A I(D), 1-Element, N-Channel, Metal-oxide Semiconductor FET
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Fall Time
Gate to Source Voltage (Vgs)
Input Capacitance
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Number of Channels
Number of Elements
Number of Pins
Number of Terminals
Packaging
Radiation Hardening
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Description
SOT
Tin
30 A
100 V
37.5 mΩ
100 V
18 ns
20 V
1.905 nF
Production (Last Updated: 6 months ago)
RELEASED FOR SUPPLY (Last Updated: 6 months ago)
100 V
175 °C
94.9 W
100 V
-55 °C
1
1
4
4
Tape & Reel
No
37.5 mΩ
Yes
18 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
31 ns
10 ns
In Stock
Quantity
MOQ : 1
Per Unit Price
₹106.70
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹69.54
₹695.35
25
₹69.55
₹1738.83
50
₹69.55
₹3477.66
100
₹44.15
₹4414.88
500
₹37.11
₹18553.16
1000
₹37.11
₹37106.32
